Description
GENERAL
The digital voltage regulator is a control unit that regulates the output voltage of a brushless AC generator by controlling the current into the generator exciter field. It is a highly sensitive component and vital to the general operation of a generator or AC alternator. Input power to the automatic voltage regulator is derived from a single-phase permanent magnet generator (PMG).

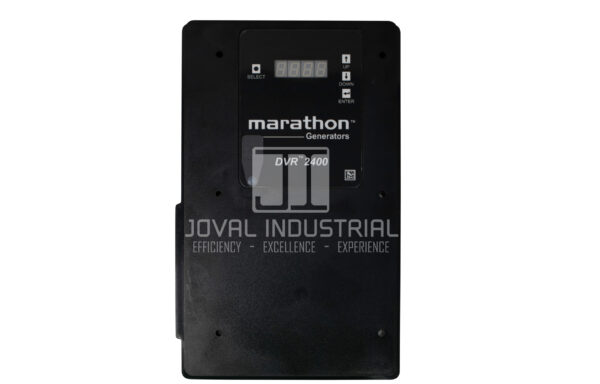

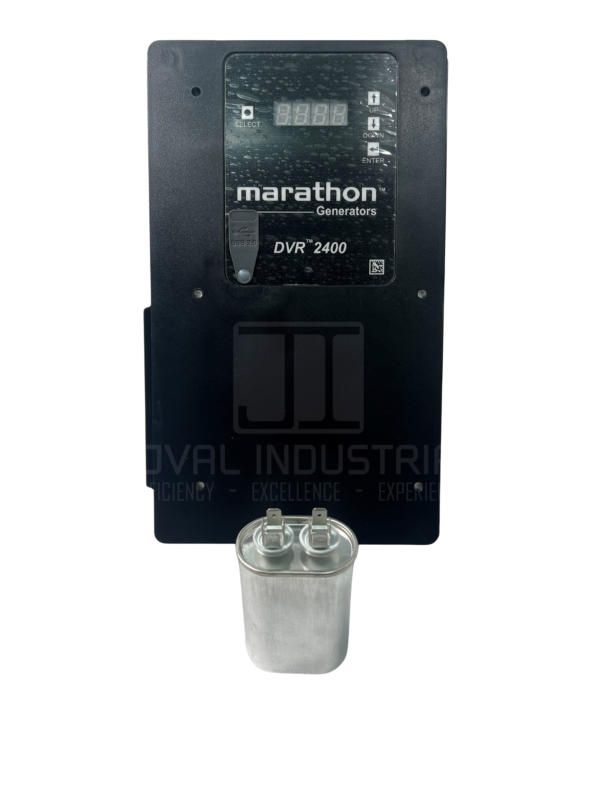

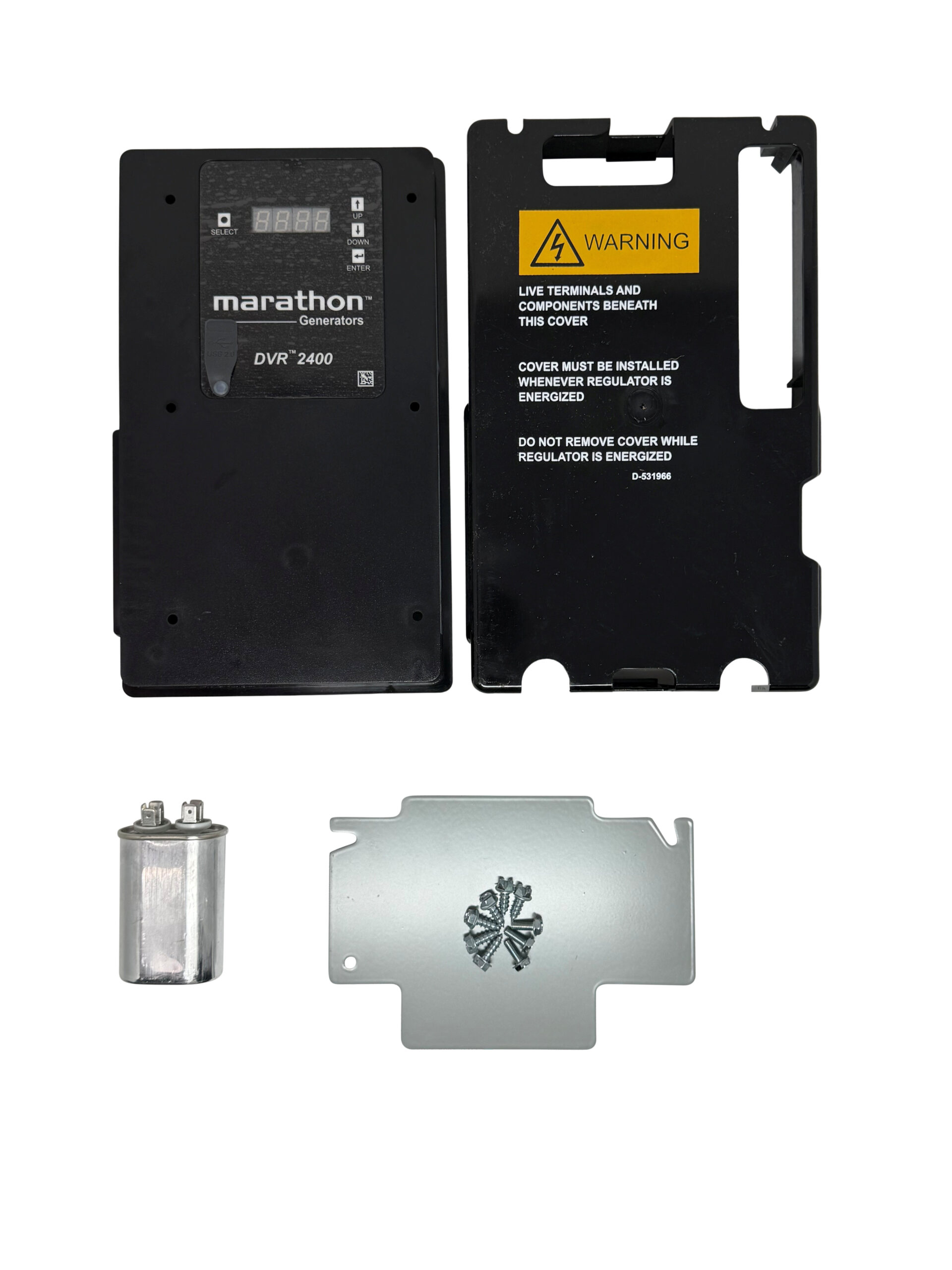

The DVR2400 is supplied in an encapsulated package designed for behind-the-panel mounting. The front side of the regulator displays the AVR status and generator conditions
APPLICATIONS
- Mainly used on SDMO, Kohler, MTU ONSITE Energy, Tradewinds, Hipower/Himoinsa diesel generator sets
CORRESPONDING, ASSOCIATED & OBSOLETEĀ PART NUMBERS
- DVR2000E+ (Factory recommended replacement)
- DVR2000E (Factory recommended replacement)
- DVR2000 (Factory recommended replacement)
- PM100A (Factory recommended replacement)
- PM100 (Factory recommended replacement)
- PL-8794700HMG01
- PL8794700JKG02
- GPN046
- Kohler GM111325
- Kohler GM88362
- Generac 0E3555
