BTB3P2UD200N4 McPherson Automatic Transfer Switch

Product Summary
  • Automatic Transfer Switch
  • 200 AMPS
  • 3 Pole / 3 Phase, 50/60 Hz
  • 240V max
  • 4 wire – including neutral
  • BTB3P2UD All-in-One Controller/MCB Style Switch
  • NEMA 3R Weather-Proof Enclosure for Indoor or Outdoor use
  • USA or Export type – UL1008 Listed
  • DOWNLOAD DATASHEET – Click Here

SKU: BTB3P2UD200N4 Categories: ,

Description

General:

The Mcpherson MTS BTB3P2UD200N4 automatic transfer switch is an essential component for businesses and industries seeking uninterrupted power supply. This reliable device seamlessly manages the transition between utility power and backup generators during outages, ensuring continuous operations and safeguarding critical equipment.

Efficient Power Management: Equipped with advanced technology, the BTB3P2UD200N4 automatic transfer switch efficiently manages power flow. By automatically detecting disruptions in utility power, it swiftly transfers the load to backup generators. This streamlined process eliminates the need for manual intervention, saving time and effort during emergencies.

Power Transitions with Precision: The BTB3P2UD200N4 ensures precise and reliable power transitions, guaranteeing a smooth switch from the utility power source to the backup generator. This feature is particularly valuable for sensitive environments such as data centers, hospitals, and manufacturing facilities, where even a momentary loss of power can lead to significant financial losses or compromise safety.

Enhanced Equipment Protection: Featuring built-in surge protection, the BTB3P2UD200N4 shields your equipment from voltage spikes and other electrical disturbances. This safeguarding mechanism prevents potential damage, extending the lifespan of your valuable assets and reducing maintenance costs.

Reliability and Durability: Designed to withstand demanding operating conditions, the BTB3P2UD200N4boasts a robust construction and high-quality components. This ensures long-term reliability and durability. Compliant with industry standards, this transfer switch provides the peace of mind and confidence necessary for optimal performance.

Basic Features:

  • Integrated programmable controller with switch save space, installation time and cost
  • MCS type
  • 2-wire dry contact autostart output (Generator must have autostart enabled controller)
  • Electrical and Manual operation, Lug connections to avoid crimping
  • Safety lock to avoid injury to personnel during maintenance
  • Color LCD display allows direct input of settings
  • All phase voltage/frequency monitor & protection for Utility & Generator
  • Auxiliary contacts to indicate Utility or Generator MCCB closed
  • Adjustable Weekly exercise timer from 1 to 4 weeks
  • Both mechanical and electrical interlock protections
  • Complies with IEC60947-6-1 and AC-33A Utilization Category
  • Optional communication modules for remote monitoring and control with a Smartphone
  • Option of English or Spanish language display
  • All fault message accompany by an audio alarm to notify the user

NOTE:

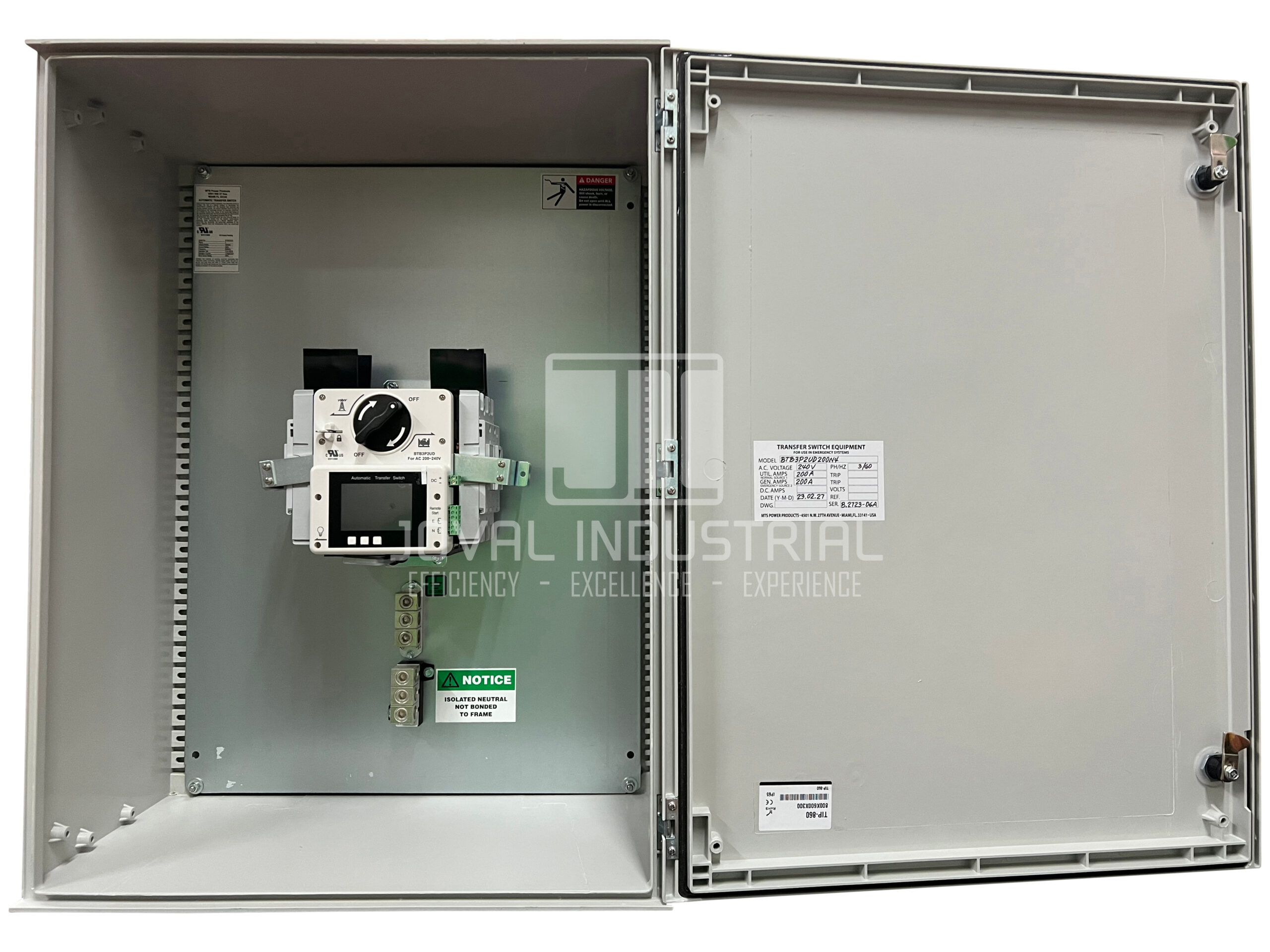

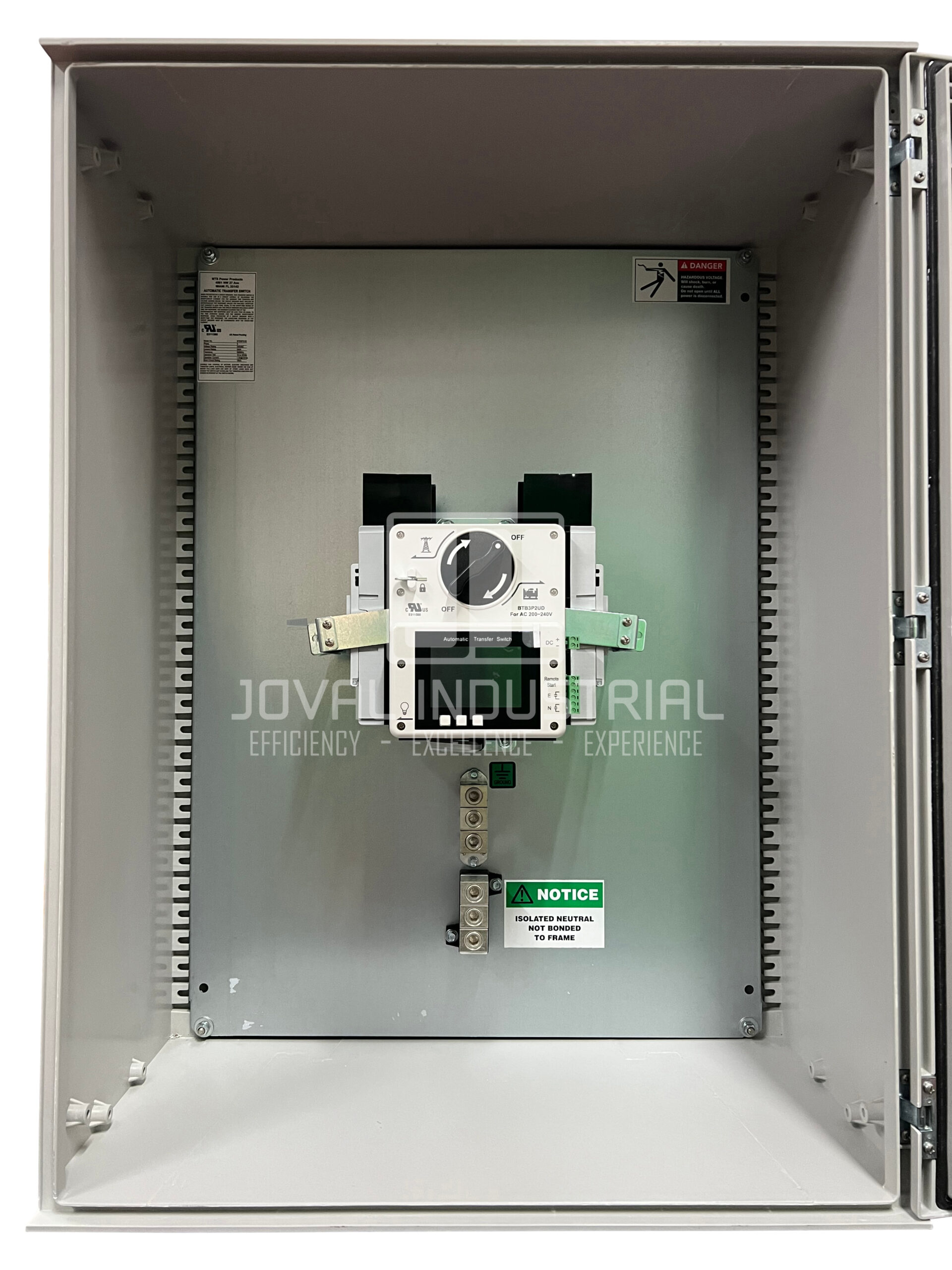

>Listing photos are representative and may not reflect exact model
>High voltage can harm or cause death. This switch should only be installed or serviced by a trained technician
