Description
GENERAL

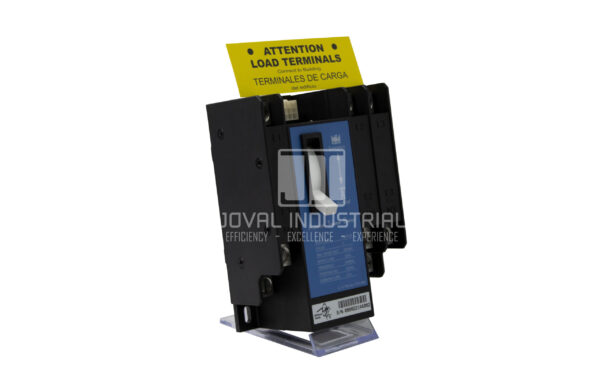

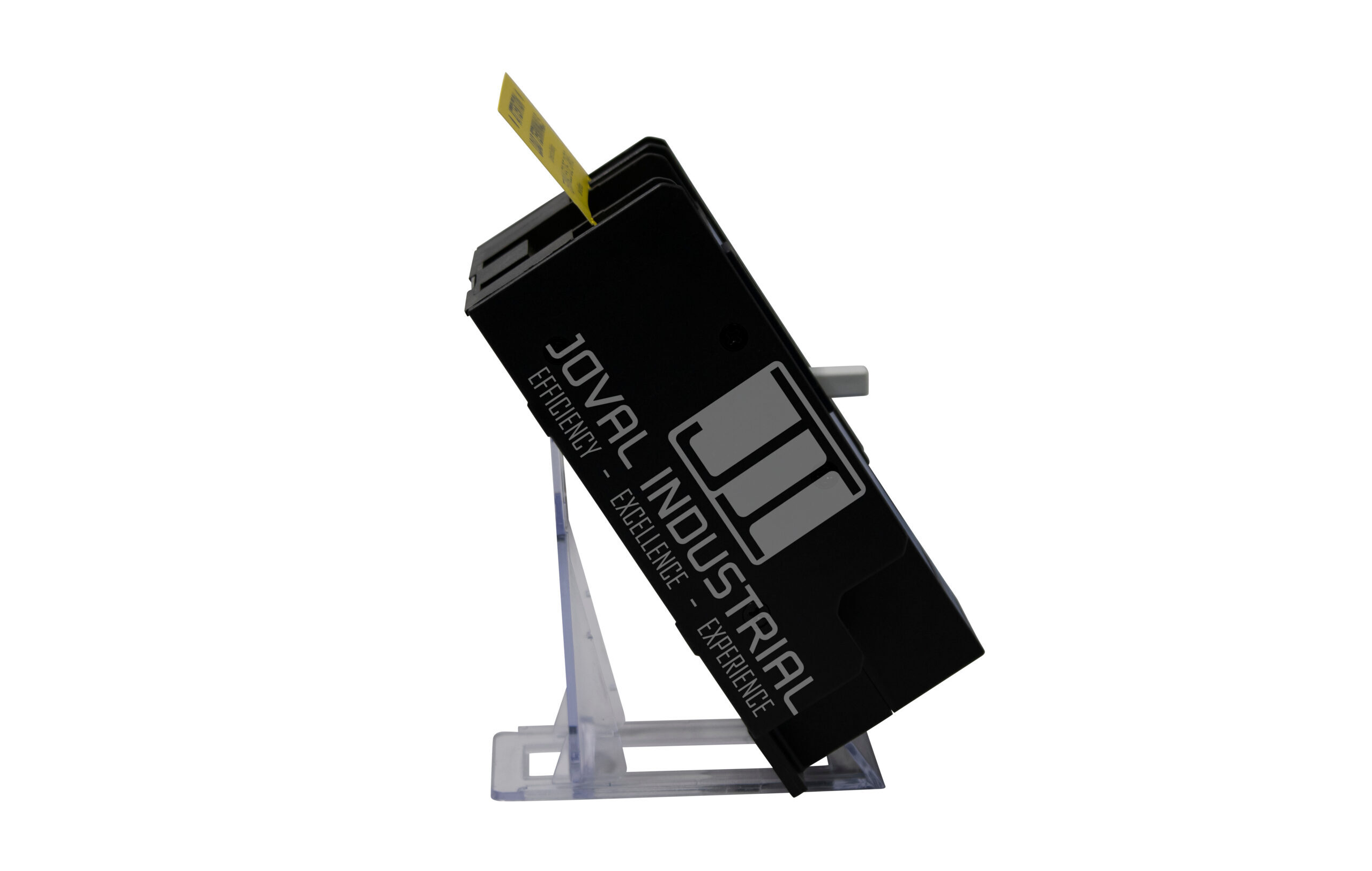

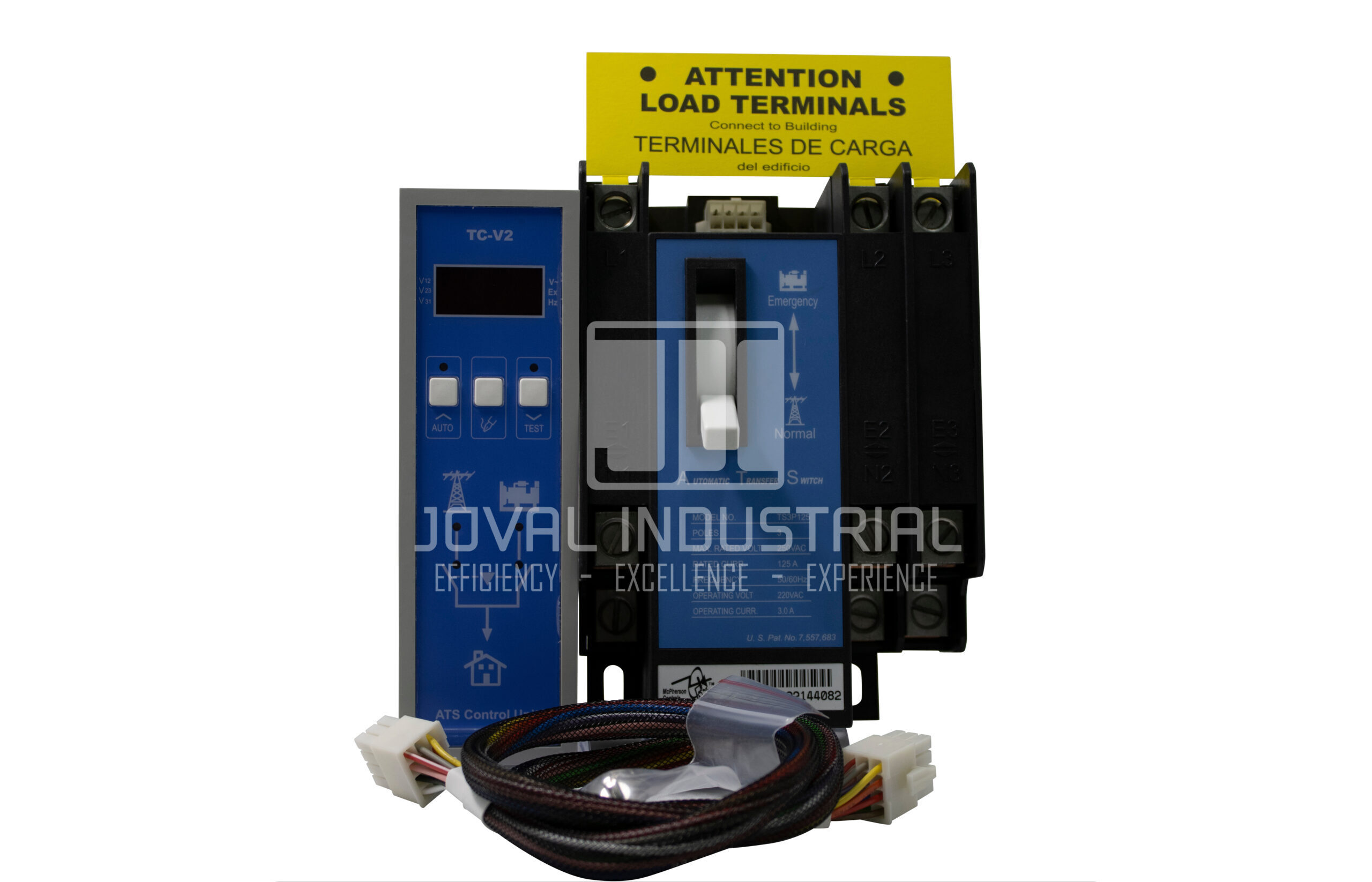

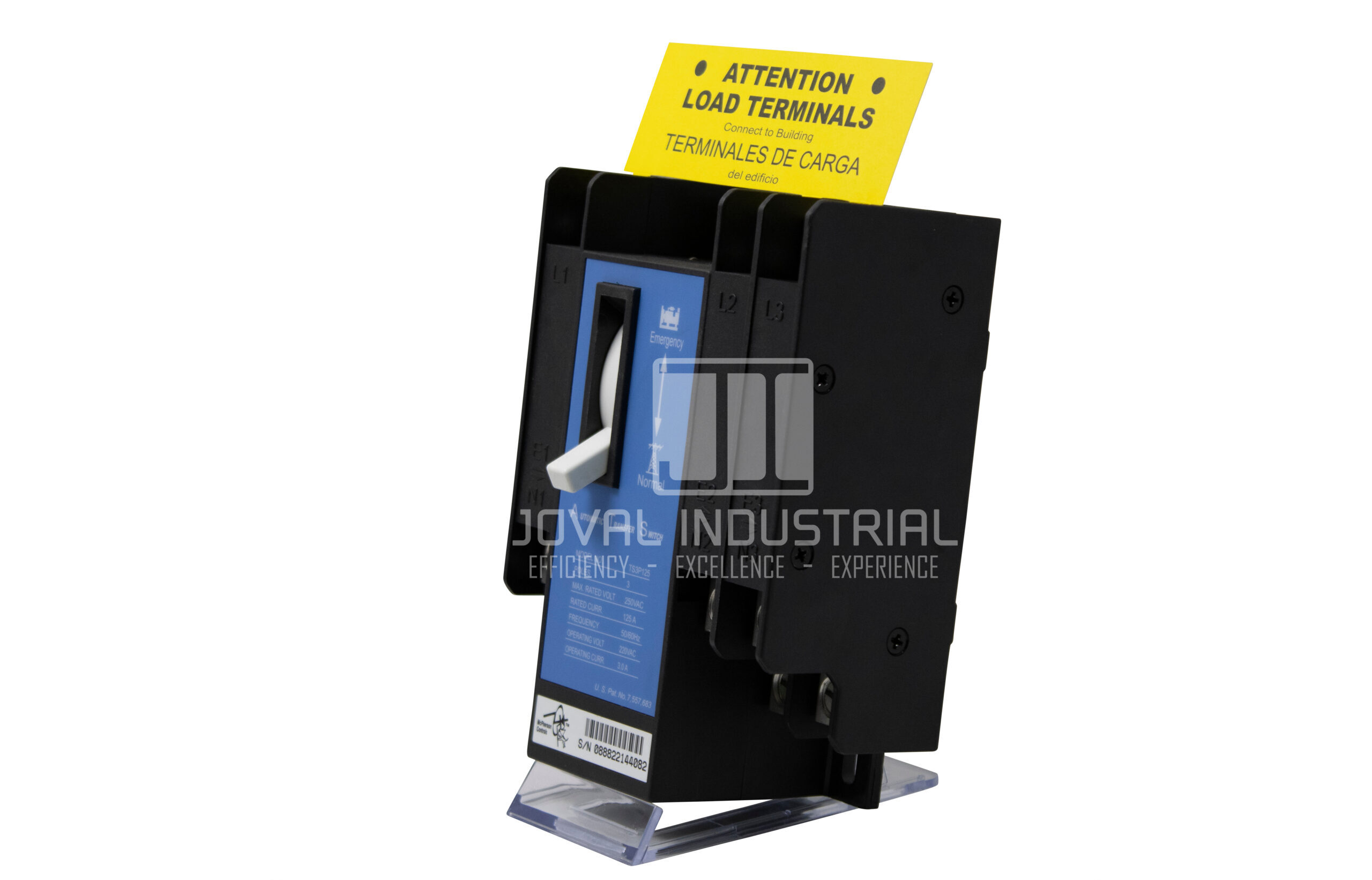

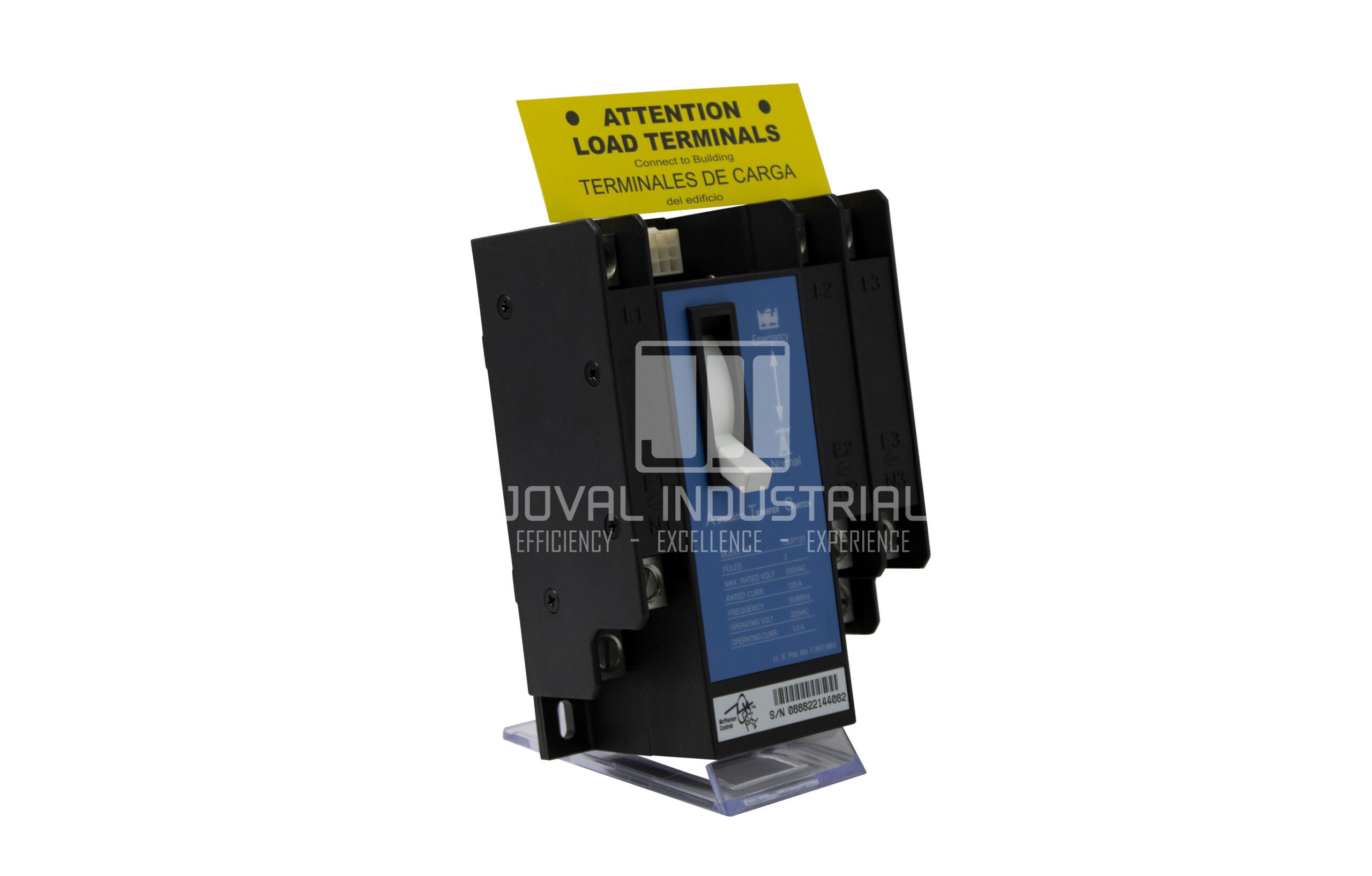

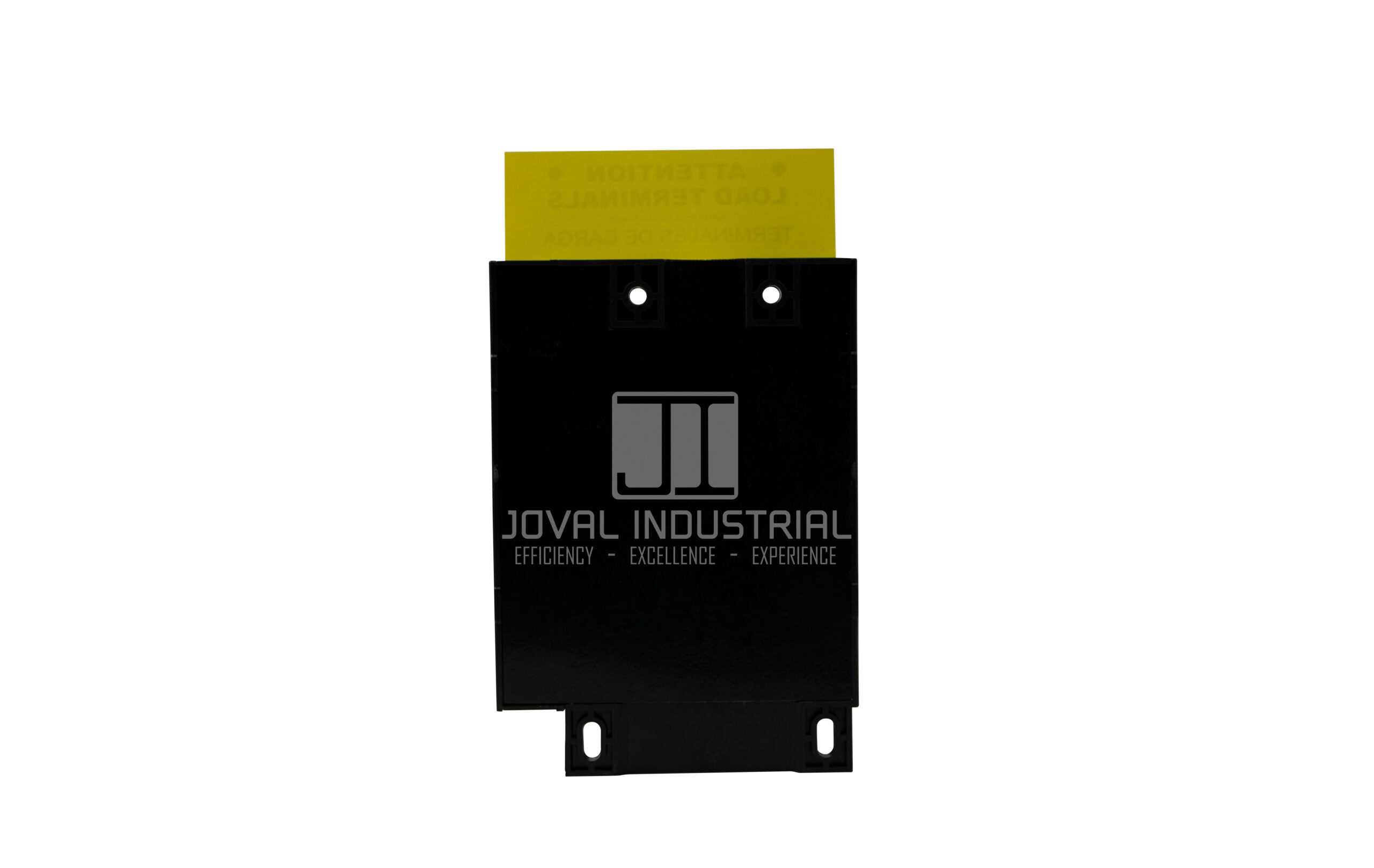

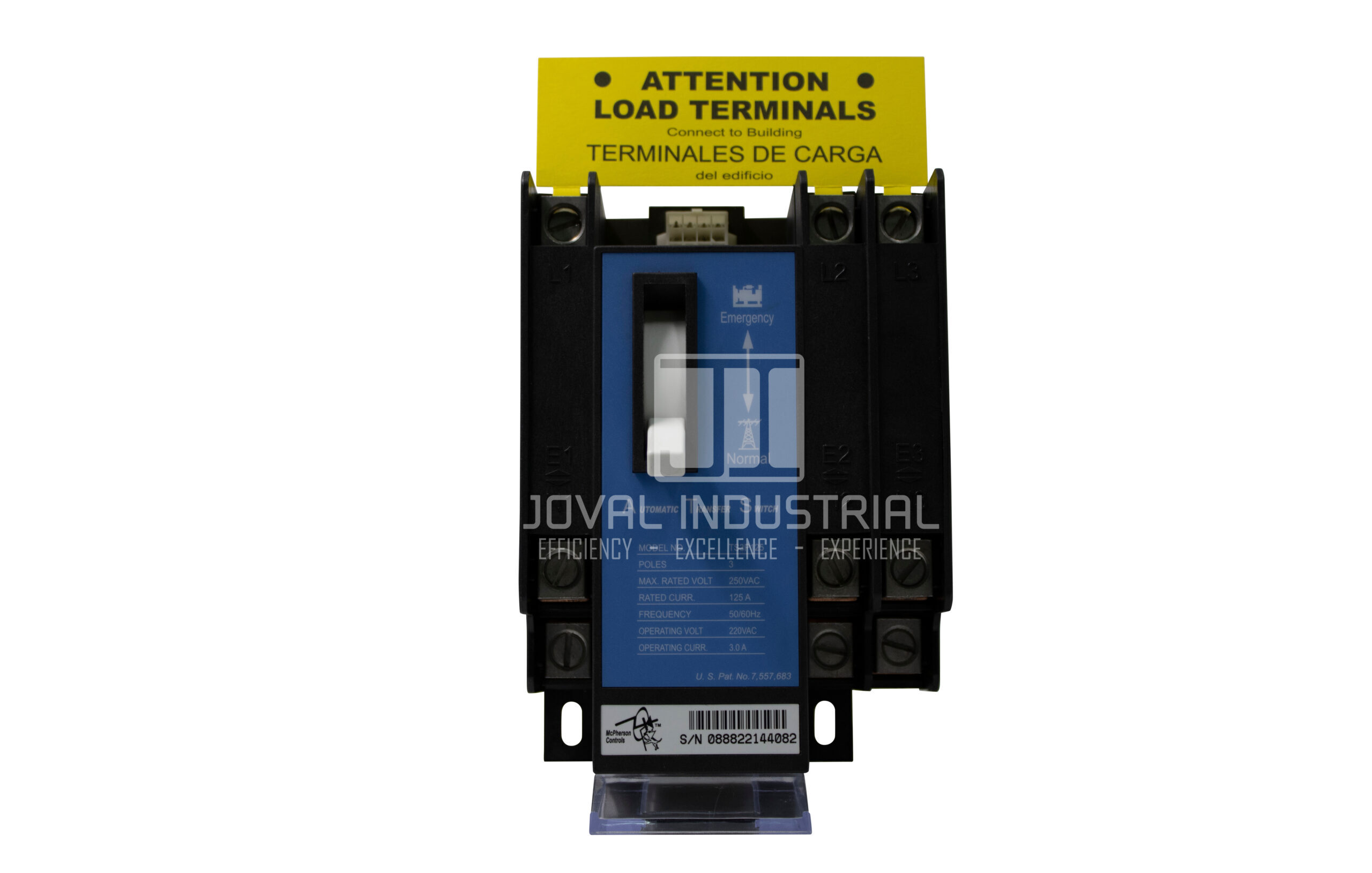

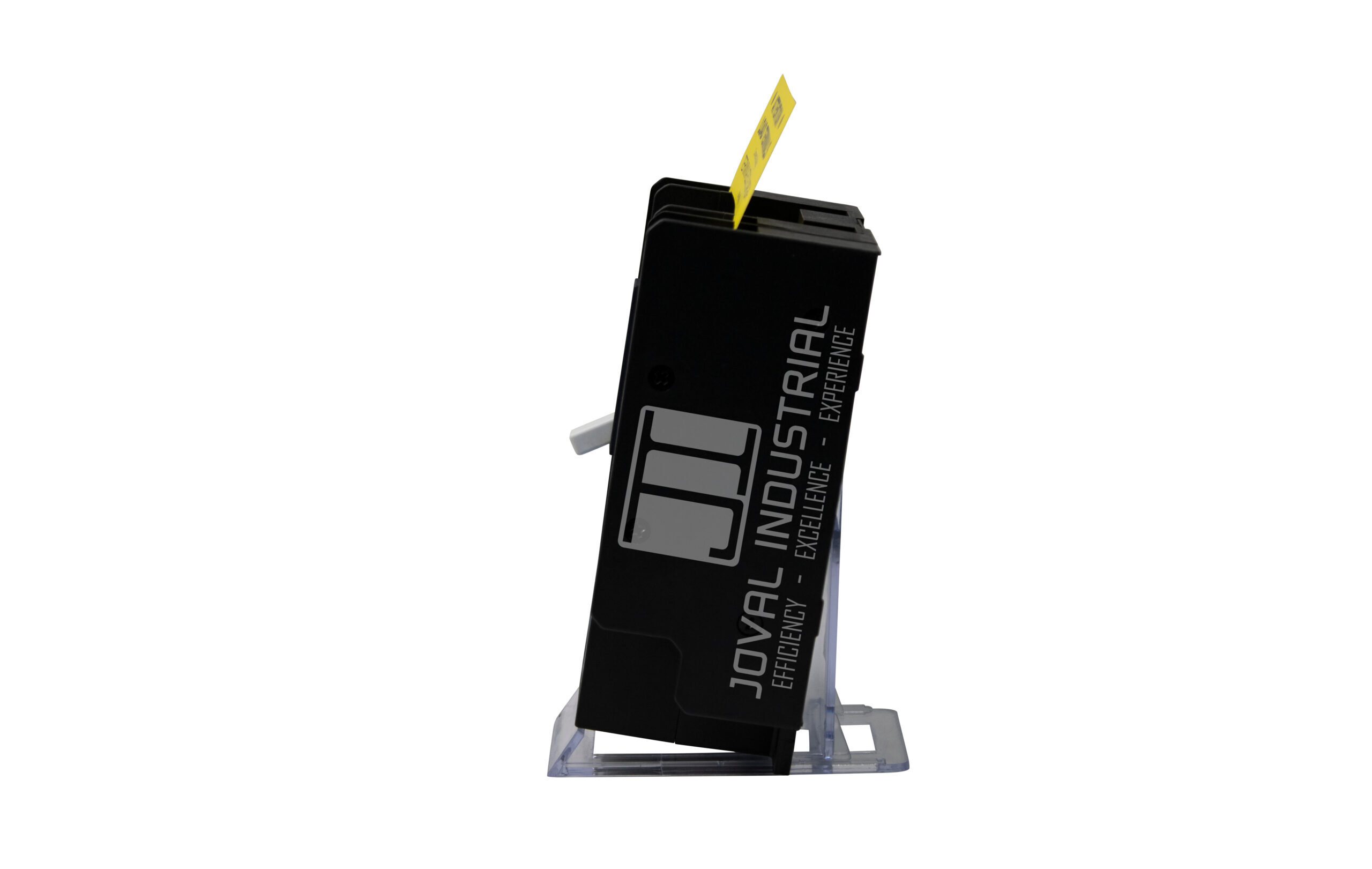

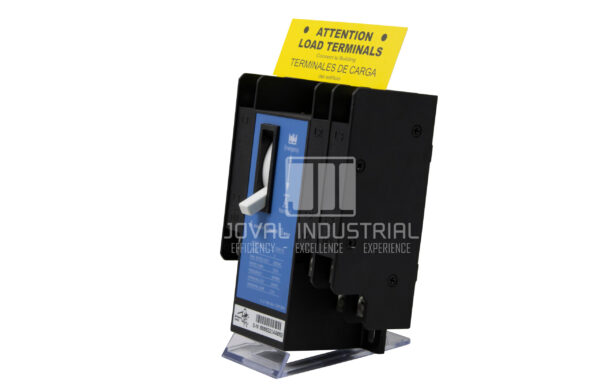

The TCS3PC125-22M 125 Amp 3 Pole ATS is designed for residential, commercial and industrial applications. The transfer switch provides flexibility of both manual and automatic functions. Can work either in 50 or 60 Hz and up to 240 volts.
FEATURES
- Automatic with Emergency Manual override
- Built in Exerciser Timer included
- Very easy to program directly on the front controller
- Under and over voltage normal source monitoring
- Under and over voltage emergency source 1Ph monitoring
- Count down display in real time
- Testing feature via the front ATS control for system check, with or without load
- 2-wire dry contact autostart output (Generator must have autostart enabled controller)
- Operator can save configuration preferences on the front transfer switch panel. No outside computer or special module needed.
NOTE:
>High voltage can harm or cause death. This switch should only be installed or serviced by a trained technician
